  • 3/8 "Drill Heavy Duty Air reversível com punho de pistola

3/8" Heavy Duty Air Reversible Drill with pistol grip

modelo : ST-M5203R20

3/8" Heavy Duty Air Reversible Drill with pistol grip

Reversible 0.6 horsepower motor turns at up to 2,000 RPM free speed

Quick-reverse lever and variable speed throttle

Average 14 CFM; 1/4 inch air inlet; minimum hose size - 3/8 inches

3/8" Heavy duty compact air reversible pneumatic drill

Model #

ST-M5203R21

Chuck Capacity

3/8"

Free Speed

2,000 RPM

Spindle

3/8"-24

Overall Length

8.46" (215 mm)

Air lnlet (PT)

1/4"

Air Hose(ID)

3/8"

Air consumption

14 cfm (396 l/min)

Air pressure

90 psi (6.2 bar)

Net Weight

1.04 kgs(2.29 lbs)


Packing: 1pc/color box, 10pcs/13kgs/1.2 cuft

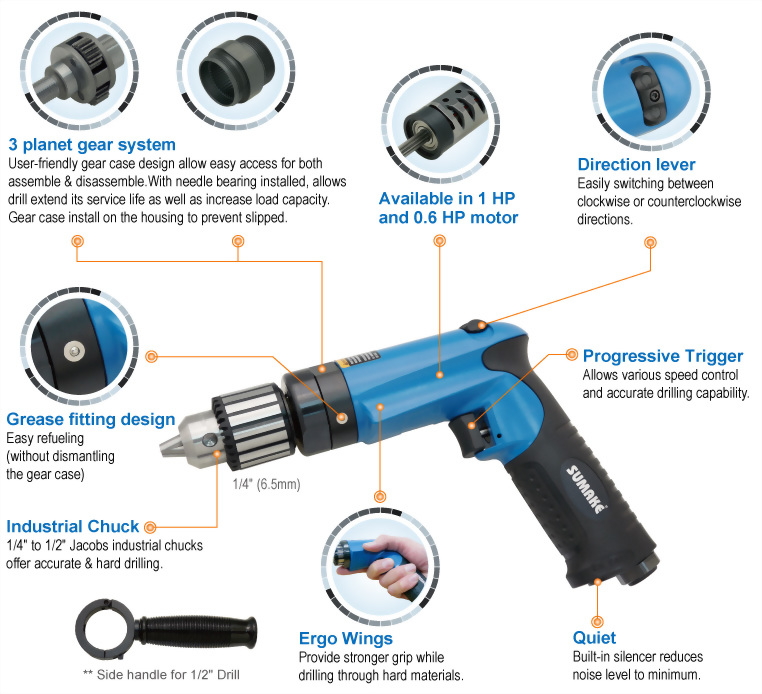

Features:

l  Light weight: Aluminum housing.

l  Compact Design: Minimize operator’s work during continuous hard drilling operation.

l  Air valves can be started slowly during high-speed operation, to  protect inner parts.

l  Minimal vibration during operation.

l  3 planet gear system:

-   User friendly gear case design allow easy access for both assemble & disassemble.

-   With needle bearing installed, allows drill entended its service life as well as load capacity.

-   Gear case install on the housing to prevent slipped.

Application:

Ideal design for Stainless steel, Aluminum, Wood…
