Automatic Screw Feeder para Parafuso M1.0 - M5.0

modelo : SF60

Automatic Screw Feederfor screw M1.0- M5.0

Model # SF60



Model #

SF60

 Applicable Screw

 M1.0-M5.0

Applicable Screw length

 Up to 19mm (under head)

Switching Adaptor

 DC15V

Power Source

 AC100-240V

Scooping Chamber Capacity

 200-220cc

Size

 182(W)*126(L)*147(H)

Weight

 N.W- Approx2.17kgs

(Excluding switching adaptor)

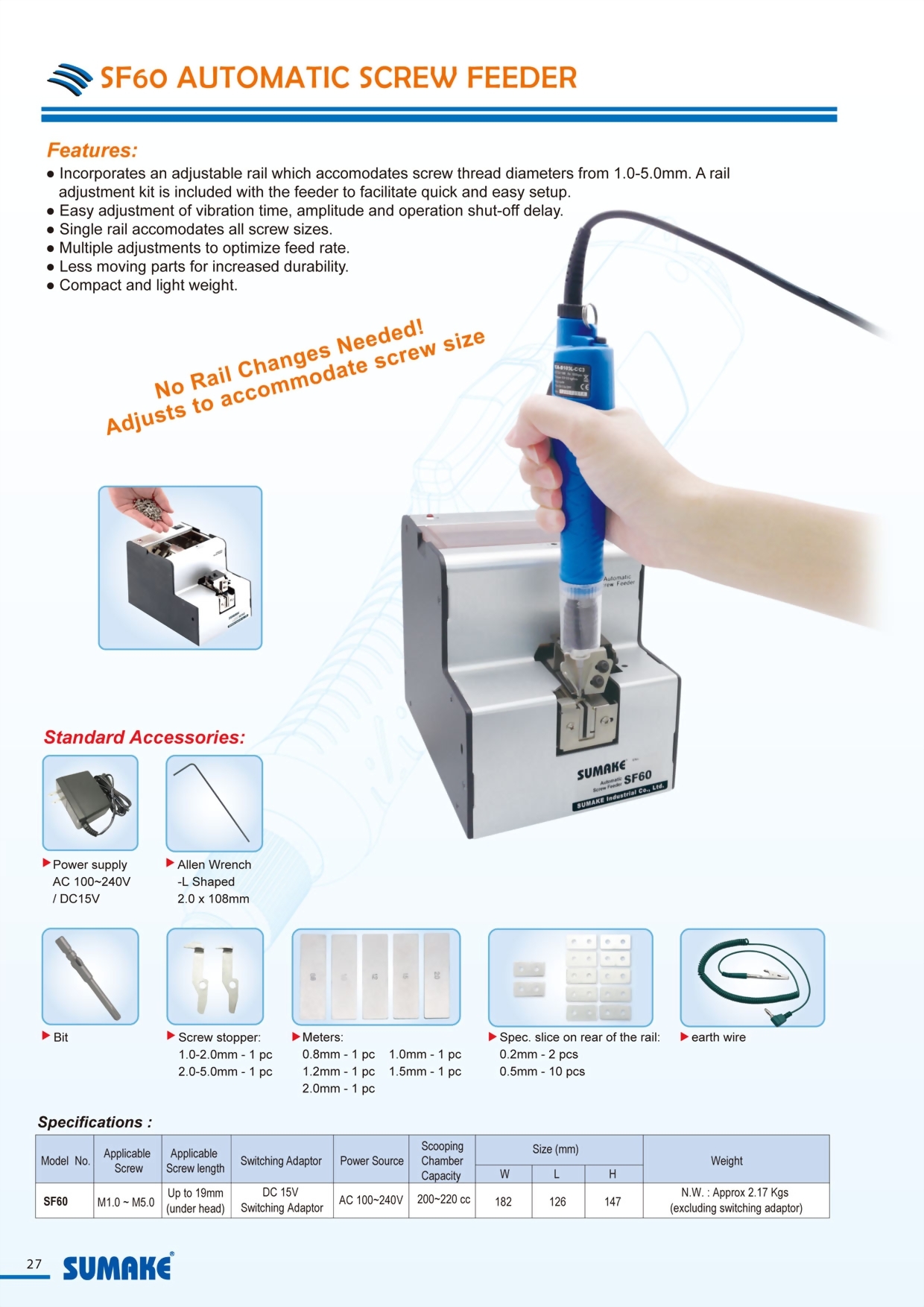

proimages/2013ES-27.jpg















Features-

* Incorporates an adjustable rail which accommodates screw thread diameters from 1.0-5.0mm. A rail adjustment kit is included with the feeder to facilitate quick and easy setup.
* Easy adjustment of vibration time; amplitude and operation shut-off delay.

* Single rail accommodates all screw sizes.

* Multiple adjustments to optimize feed rate.

* Less moving parts for increased durability.

* Compact and light weight.
